MODELS
Model 4000
Specifications
Length: 40 ft
Working Width: 18 ft
Transport Width: 9 ft
Weight: 42-46,000 lbs
Min. Tractor Horsepower: 425 Hp
Max. Working Depth: 18"
Setup Options
Disk: HD Floating Disk Assembly w/ 30" Disks
Mid Reel: Double Row 18" Reel Assembly**

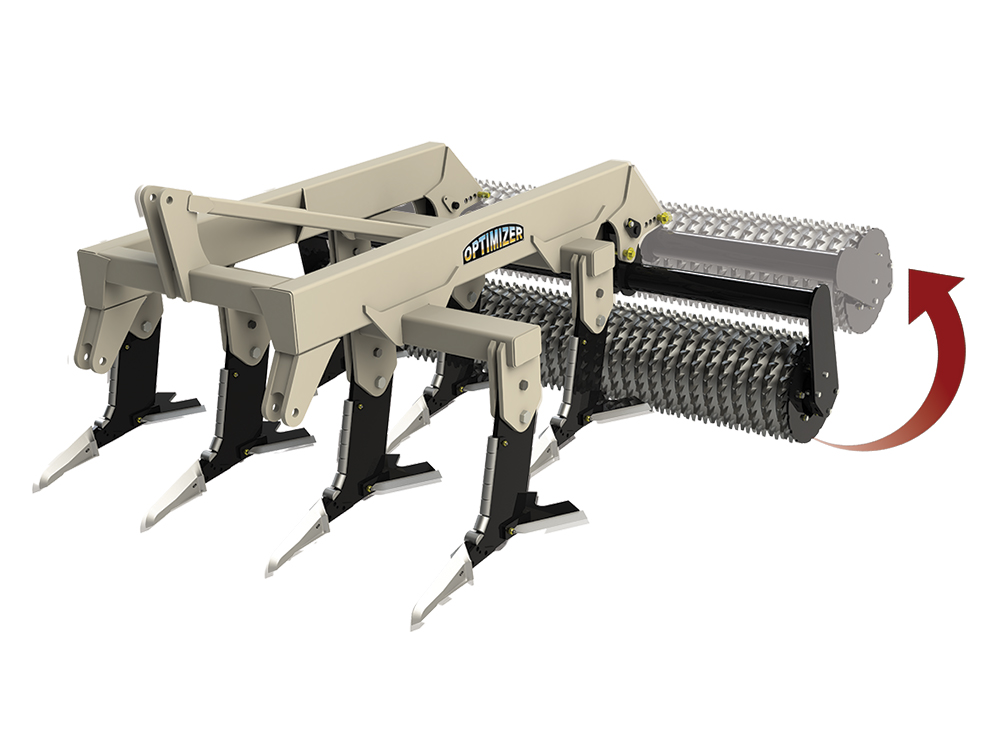

Chisel: Finish Chisel 17-Shank Assembly w/ 6-12" Depth & 12.5" Spacing (Offered with attached Coulter Assembly or Roller Assembly with 12-16" Cast Rings)
or Intermediate Chisel 13-Shank Assembly w/ 10-16" Depth & 16" Spacing (Offered with or without Hydraulic Reset Option for stony ground)
Basket Roller: Dual 18" Basket Roller Assembly
or Dual Spike Roller Assembly w/ Scrapers
Final Roller: Fixed Angle Iron Roller Assembly w/ Scrapers
or Cast 13-17" Ring Roller Assembly
Planter: Small Seed Broadcast Air Planter System
Model 2000
Specifications
Length: 40 ft
Working Width: 12 ft
Transport Width: 13.6 ft
Weight: 26-30,000 lbs
Min. Tractor Horsepower: 350 Hp
Max. Working Depth: 18"
Setup Options
Disk: HD Floating Disk Assembly w/ 30" Disks
Mid Reel: Double Row 18" Reel Assembly**
Chisel: Finish Chisel 10-Shank Assembly w/ 6-12" Depth & 12.5" Spacing (Offered with attached Coulter Assembly or Roller Assembly with 12-16" Cast Rings)
or Intermediate Chisel 8-Shank Assembly w/ 10-16" Depth & 16" Spacing (Offered with or without Hydraulic Reset Option for stony ground)
Basket Roller: Dual 18" Basket Roller Assembly
or Dual Spike Roller Assembly w/ Scrapers
Final Roller: Fixed Angle Iron Roller Assembly w/ Scrapers
or Cast 13-17" Ring Roller Assembly
Planter: Small Seed Broadcast Air Planter System
